Model UTL 500

Water / Air / Oxygen-acetylene Hose Reels

Spring Retractable

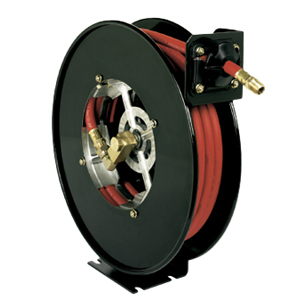

Model UTL 500 Water / Air / Oxygen-acetylene Hose Reels from Hosetract

  Models

Drag your finger across the table to scroll

Model UTL 500
Series Unitract
Weight (lb) 36
Hose ID (in) 1/2
Pressure (PSI) 1000
Inlet (in) 1/2 FPT
Hose Included no
Max Temperature °F 200

  Features

Low Pressure Reels ideally suited for plant maintenance or other industrial functions where hose storage is necessary. Standard hose for air, water and oxygen/acetylene applications. Hose can be dispensed and retracted with great ease and expedience compared to coiling by hand. The Unitractâ„¢ series fits easily into height restricted areas, and is a lighter duty reel. Not designed for truck mount applications.

Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/2" wide x 3/4" deep for max 7/16" dia. bolt.

  • Weighs 10 lbs. less than our standard reels
  • Unitized mulit-functional hub arbor
  • 8 Position guide arm
  • Minimal size envelope permits installation where space is a factor
  • Simple design incorporates fewer parts
  • Single set screw to access latch area and spring case
  • Heavy gauge base with no welds
  • Fully committed, non-jamming latch pawl

  Dimensions

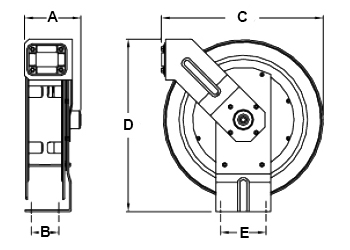

Dimensions for UTL 500 Reels from Hosetract



Drag your finger across the table to scroll

A 6
B 3
C 17 3/4
D 18 7/8
