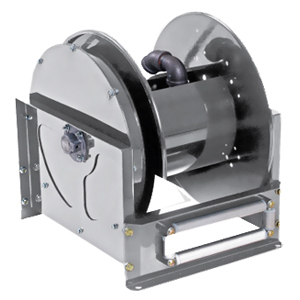

DS Series
Stainless Steel Water / Air / Chemicals Hose Reels
Spring Retractable
Models
Drag your finger across the table to scroll
| Model | Weight (lb) | Hose ID (in) | Hose Length (ft) | Pressure (PSI) | Inlet (in) | Hose Included | Max Temperature °F | Rewind Type | Fluid | Quick Ship |
|---|---|---|---|---|---|---|---|---|---|---|
| LDS 1000 | 73 | 1 | 300 | 1 FPT | no | 200 | Spring Retractable | Water Air Chemicals | ||
| LDS 1025 | 80 | 1 | 25 | 300 | 1 FPT | yes | 200 | Spring Retractable | Water Air Chemicals | |
| LDS 1045 | 90 | 1 | 45 | 300 | 1 FPT | yes | 200 | Spring Retractable | Water Air Chemicals | |
| LDS 700 | 73 | 3/4 | 300 | 1 FPT | no | 200 | Spring Retractable | Water Air Chemicals | ||
| LDS 740 | 75 | 3/4 | 40 | 300 | 1 FPT | yes | 200 | Spring Retractable | Water Air Chemicals | |
| LDS 750 | 80 | 3/4 | 50 | 300 | 1 FPT | yes | 200 | Spring Retractable | Water Air Chemicals | |
| LDS 770 | 86 | 3/4 | 70 | 300 | 1 FPT | yes | 200 | Spring Retractable | Water Air Chemicals |
Features
DS Series Reels of 304 Stainless Steel should be utilized in harsh environments, such as chemical clean up or when a clean area is necessary for food or beverage processing. The latch mechanism is non-sparking in the event that flammable gases or liquids are present. Only available in low pressure.
Reels available only in standard (rf) hose payout position.
Ceiling mount bracket available
Mounting holes 1/2" dia.
- Air / Water application hose
- White wash-down hose
- Chemical application hose

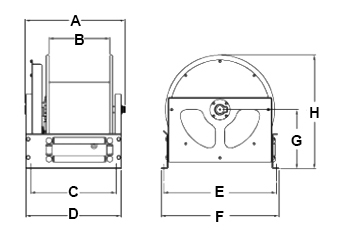

Dimensions
Drag your finger across the table to scroll
| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| LDS 1000 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
| LDS 1025 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
| LDS 1045 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
| LDS 700 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
| LDS 740 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
| LDS 750 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
| LDS 770 | 16.500 | 10.000 | 14.000 | 20.000 | 18.500 | 19.375 | 9.750 | 18.750 |
