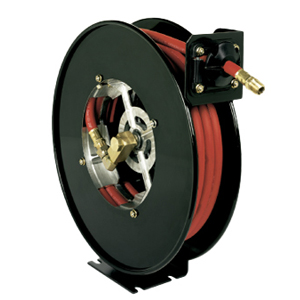

Unitract Series
Water / Air Hose Reels
Spring Retractable
Models
Drag your finger across the table to scroll
| Model | Weight (lb) | Hose ID (in) | Hose Length (ft) | Pressure (PSI) | Inlet (in) | Hose Included | Max Temperature °F | Rewind Type | Fluid | Quick Ship |
|---|---|---|---|---|---|---|---|---|---|---|
| UTL 325 | 41 | 3/8 | 25 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 330 | 42 | 3/8 | 30 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 335 | 43 | 3/8 | 35 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 340 | 44 | 3/8 | 40 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 350 | 44 | 3/8 | 50 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 540 | 46 | 1/2 | 40 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 550 | 47 | 1/2 | 50 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oxygen-acetylene | |
| UTL 300 | 36 | 3/8 | 1000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Oxygen-acetylene | ||
| UTL 500 | 36 | 1/2 | 1000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Oxygen-acetylene |
Features
Low Pressure Reels ideally suited for plant maintenance or other industrial functions where hose storage is necessary. Standard hose for air, water and oxygen/acetylene applications. Hose can be dispensed and retracted with great ease and expedience compared to coiling by hand. The Unitract™ series fits easily into height restricted areas, and is a lighter duty reel. Not designed for truck mount applications.
Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/2" wide x 3/4" deep for max 7/16" dia. bolt.
- Weighs 10 lbs. less than our standard reels
- Unitized mulit-functional hub arbor
- 8 Position guide arm
- Minimal size envelope permits installation where space is a factor
- Simple design incorporates fewer parts
- Single set screw to access latch area and spring case
- Heavy gauge base with no welds
- Fully committed, non-jamming latch pawl

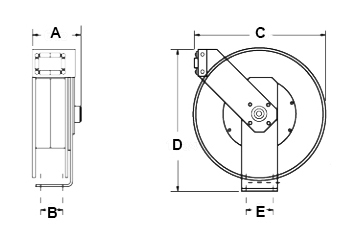

Dimensions
Drag your finger across the table to scroll
| Model | A | B | C | D |
|---|---|---|---|---|
| UTL 325 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 330 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 335 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 340 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 350 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 540 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 550 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 300 | 6.000 | 3.000 | 17.750 | 18.875 |
| UTL 500 | 6.000 | 3.000 | 17.750 | 18.875 |
