Stack Frame Series
Water / Air / Chemicals Hose Reels
Hand Crank
Models
Drag your finger across the table to scroll
| Model | Weight (lb) | Hose ID (in) | Hose Length (ft) | Pressure (PSI) | Inlet (in) | Hose Included | Max Temperature °F | Rewind Type | Fluid | Quick Ship |
|---|---|---|---|---|---|---|---|---|---|---|
| SFM 10 10 | 39 | 3/4 | 75 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 25 10_ | 74 | 1 | 125 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 25 10 | 74 | 3/4 | 150 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 20 10_ | 62 | 1 | 100 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 20 10 | 62 | 3/4 | 125 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 15 10_ | 51 | 1 | 75 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 15 10 | 51 | 3/4 | 100 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 10 10_ | 39 | 1 | 50 | 300 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 15 5 | 51 | 3/8 | 350 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 25 5 | 74 | 3/8 | 550 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 10 5 | 39 | 3/8 | 250 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 20 5_ | 62 | 1/2 | 375 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 20 5 | 62 | 3/8 | 450 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 10 5_ | 39 | 1/2 | 175 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 15 5_ | 51 | 1/2 | 275 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals | |
| SFM 25 5_ | 74 | 1/2 | 475 | 4000 | 1/2 Female Thr | no | 200 | Hand Crank | Water Air Chemicals |
Features
Stackable Frame Reels are manually-driven reels are for long lengths of hose, as in Agriculture, Power Wash, Pest Control and Construction. Hose can be dispensed and retracted with great ease and expedience compared to coiling by hand.
All reels shipped less hose unless requested on quote basis.
Mounting holes 1/2" dia.

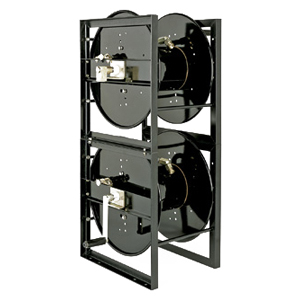

Pictured as two units. Each sold separately.
- Flow through shaft for universal installation
- Stack capability with no added parts
- Nylon/glass filled bearings
- Super Swivel for longer life
- Fully adjustable brake - adjust tension with hand knob
- Positive lock pin
- Mounting base is light and strong
- 3 or 4 roller kits can be mounted top or bottom position (sold separately)

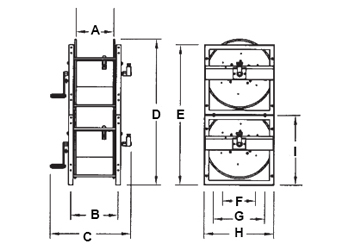

Dimensions
Drag your finger across the table to scroll
| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| SFM 10 10 | 10.000 | 12.750 | 21.375 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 25 10_ | 25.000 | 28.500 | 37.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 25 10 | 25.000 | 28.500 | 37.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 20 10_ | 20.000 | 23.500 | 32.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 20 10 | 20.000 | 23.500 | 32.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 15 10_ | 15.000 | 18.500 | 27.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 15 10 | 15.000 | 18.500 | 28.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 10 10_ | 10.000 | 12.750 | 21.375 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 15 5 | 15.000 | 18.500 | 27.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 25 5 | 25.000 | 28.500 | 37.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 10 5 | 10.000 | 12.750 | 21.375 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 20 5_ | 20.000 | 23.500 | 32.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 20 5 | 20.000 | 23.500 | 32.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 10 5_ | 10.000 | 12.750 | 21.375 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 15 5_ | 15.000 | 18.500 | 27.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
| SFM 25 5_ | 25.000 | 28.500 | 37.125 | 39.500 | 38.000 | 9.000 | 14.000 | 19.000 | 19.000 |
