Model SFM 10 5_

Water / Air / Chemicals Hose Reels

Hand Crank

Model SFM 10 5_ Water / Air / Chemicals Hose Reels from Hosetract


Drag your finger across the table to scroll

Model SFM 10 5_
Series Stack Frame
Weight (lb) 39
Hose ID (in) 1/2
Hose Length (ft) 175
Pressure (PSI) 4000
Inlet (in) 1/2 Female Thr
Hose Included no
Max Temperature °F 200


Stackable Frame Reels are manually-driven reels are for long lengths of hose, as in Agriculture, Power Wash, Pest Control and Construction. Hose can be dispensed and retracted with great ease and expedience compared to coiling by hand.

All reels shipped less hose unless requested on quote basis.
Mounting holes 1/2" dia.

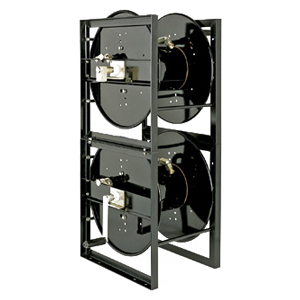

Pictured as two units. Each sold separately.

  • Flow through shaft for universal installation
  • Stack capability with no added parts
  • Nylon/glass filled bearings
  • Super Swivel for longer life
  • Fully adjustable brake - adjust tension with hand knob
  • Positive lock pin
  • Mounting base is light and strong
  • 3 or 4 roller kits can be mounted top or bottom position (sold separately)

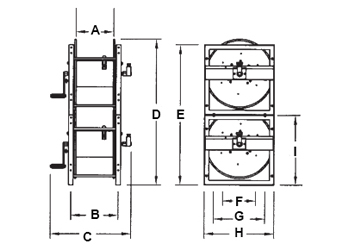

Dimensions for SFM 10 5_ Reels from Hosetract

Drag your finger across the table to scroll

A 10
B 12 3/4
C 21 3/8
D 39 1/2
E 38
F 9
G 14
H 19
