M Mini Series

Water / Air / Chemicals Hose Reels

Hand Crank

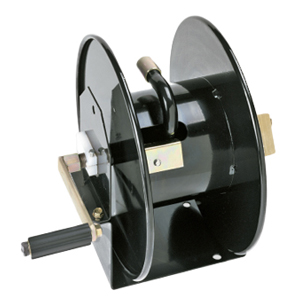

M Mini Series Series  Water / Air / Chemicals Hose Reels from Hosetract


Drag your finger across the table to scroll

Model Weight (lb) Hose ID (in) Hose Length (ft) Pressure (PSI) Inlet (in) Hose Included Max Temperature °F Rewind Type Fluid Quick Ship
M 10 5 14233/815040001/2 FPTno200Hand CrankWater
M 10 5 14_231/210040001/2 FPTno200Hand CrankWater
M 5 5 14203/87540001/2 FPTno200Hand CrankWater
M 5 5 14_201/25040001/2 FPTno200Hand CrankWater


M Series Mini compact, manually-driven reels for up to 150ft. of 3/8" I.D. hose fit where space and weight are critical. These reels are ideally fitted into tight space applications such as small truck skid units for pesticides, presure wash or deployment of air tools in the construction.

All reels shipped less hose unless requested on quote basis.
Mounting holes 1/2" dia.
Also Available in Stainless Steel

In addition to the standard M Mini Hose Reels, Hosetract now offers the M Mini Reels with a Swivel Base option. These models incorporate a swivel base assembly. The reel and base assembly can be either machine mounted to pressure wash units or static mounted to wall or other structures.
Contact a mdi Product Expert for models numbers and mount options.

  • Beaded edges on spool prevents hose damage or injury to operator. Heavy 12 GA. base
  • Heavy 12 GA. base
  • Heavy duty ABS bearings require no lubrication for years of dependable service
  • Fully adjustable brake - adjust with hand knob
  • Only 14 1/2" tall
  • Super Swivel for longer life

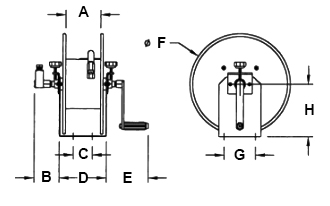

Dimensions for M Mini Series Reels from Hosetract

Drag your finger across the table to scroll

Model A B C D E F G H
M 10 5 1410.0003.6257.75012.0006.00014.0004.5007.500
M 10 5 14_10.0003.6257.75012.0006.00014.0004.5007.500
M 5 5 145.0003.6252.7507.0006.00014.0004.5007.500
M 5 5 14_5.0003.6252.7507.0006.00014.0004.5007.500
