Model MG 375

Water / Air / Oil Hose Reels

Spring Retractable

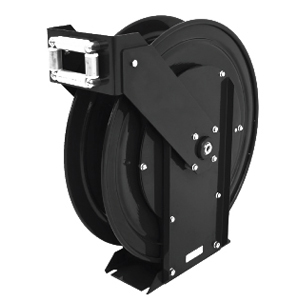

Model MG 375 Water / Air / Oil Hose Reels from Hosetract


Drag your finger across the table to scroll

Model MG 375
Series G
Weight (lb) 90
Hose ID (in) 3/8
Hose Length (ft) 75
Pressure (PSI) 2500
Inlet (in) 1/2 FPT
Hose Included yes
Max Temperature °F 200


Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/2" wide x 3/4" deep for max 7/16" dia. bolt.
Standard Black Powder Coat.

LG - Low Pressure Reels for plant maintenance, service trucks and other industrial applications where hose storage is necessary. Standard hose for air, water, and antifreeze solutions. Other hoses available upon request.

MG - Medium Pressure Reels for higher pressures of air, water, or heavier oils. Standard 1-wire braid hose furnished.

HG - High Pressure Reels are used exclusively where grease is being applied as in lube applications for oil-road service or garage lube systems. Standard 2-wire braid hose furnished.

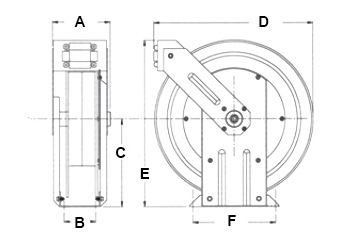

Dimensions for MG 375 Reels from Hosetract

Drag your finger across the table to scroll

A 8 1/4
B 4 1/2
C 12 1/2
D 22 1/2
E 23 5/8
F 11 3/4
