Model LB 300

Water / Air / Anti-freeze Hose Reels

Spring Retractable

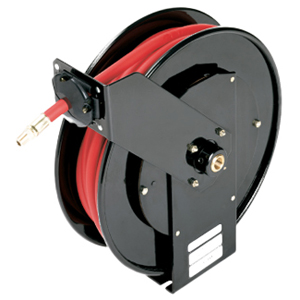

Model LB 300 Water / Air / Anti-freeze Hose Reels from Hosetract


Drag your finger across the table to scroll

Model LB 300
Series B
Weight (lb) 25
Hose ID (in) 3/8
Pressure (PSI) 1000
Inlet (in) 3/8 FPT
Hose Included no
Max Temperature °F 200


B Series Reels are best used with shorter and lower volume hose operations, such as auto-truck service garages for all air applications as well as anti-freeze, motor oil, ATF and grease. The all brass main shaft and swivel assure less corrosion for extended seal life the low pressure rating (up to 1000 PSI).

Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 3/8" wide x 3/4" deep for max 5/16" dia. bolt

LB - Low Pressure Reels for Air, Water and Anti-freeze

MB - Medium Pressure Reels for Motor oil and ATF. Standard 1-wire braid hose furnished.

HB - High Pressure Reels for Grease. Standard 2-wire braid hose furnished.

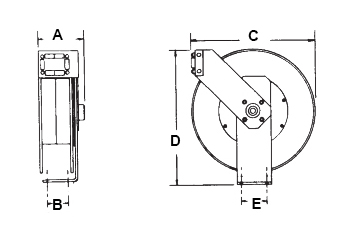

Dimensions for LB 300 Reels from Hosetract

Drag your finger across the table to scroll

A 5 1/4
B 2 3/4
C 14
D 14 7/8
E 4
