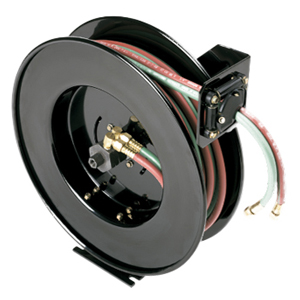

Model COA 200
Oxygen-acetylene Hose Reels
Spring Retractable
Models
Drag your finger across the table to scroll
| Model | COA 200 |
|---|---|
| Series | Oxygen-acetylene |
| Weight (lb) | 46 |
| Hose ID (in) | 1/4 |
| Pressure (PSI) | 1000 |
| Inlet (in) | 1/4 FTP |
| Hose Included | no |
| Max Temperature °F | 200 |
Features
Oxygen/Acetylene Reels are ideal when space and safety is required in the welding & cutting area. These reels are capable of storing and dispensing 50 feet of twin siamese welding hose.
Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/2" wide x 3/4" deep for max 7/16" dia. bolt.
All hose lengths are for twin hose.
- The exclusive dual hex was designed by the original designer of this dual body concept
- The major advantage of the swivel design is that in the event of an O-ring failure, the gases will go to atmosphere instead of mixing
- Safety banded drive spring
- The swivel is marked for the acetylene side with notches on the hex nuts for easy identification
- Beaded edges on spool prevents hose damage or injury to operator
- 8-position guide arm

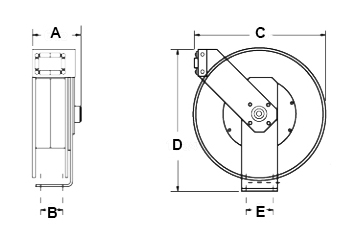

Dimensions
Drag your finger across the table to scroll
| A | 6 1/2 |
|---|---|
| B | 3 |
| C | 18 |
| D | 18 3/4 |
| E | 5 |
