Model LCS 300

Stainless Steel Water / Air / Chemicals Hose Reels

Spring Retractable

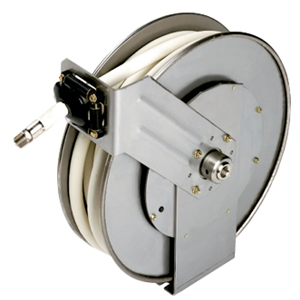

Model LCS 300 Water / Air / Chemicals Hose Reels from Hosetract


Drag your finger across the table to scroll

Model LCS 300
Series CS
Weight (lb) 40
Hose ID (in) 3/8
Pressure (PSI) 1000
Inlet (in) 1/2 FPT
Hose Included no
Max Temperature °F 200


CS Series Reels of 304 Stainless Steel should be utilized in harsh environments, such as chemical clean up or when a clean area is necessary for food or beverage processing. The latch mechanism is non-sparking in the event that flammable gases or liquids are present. Only available in low pressure.

Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/" wide x 3/4" deep for max 7/16" dia. bolt.

  • Air / Water application hose
  • White wash-down hose
  • Chemical application hose
  • Nickel Plated shaft and swivel are standard, for stainless shaft and swivel option contact a mdi Product Expert

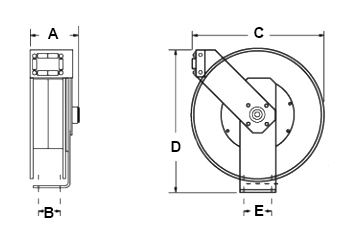

Dimensions for LCS 300 Reels from Hosetract

Drag your finger across the table to scroll

A 6 1/2
B 3
C 18
D 18 3/4
E 5
