Model HD 375

Oil / Grease Hose Reels

Spring Retractable

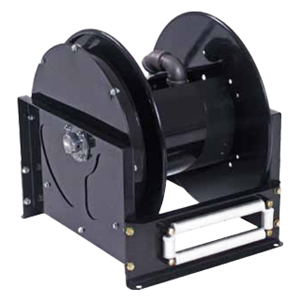

Model HD 375 Oil / Grease Hose Reels from Hosetract


Drag your finger across the table to scroll

Model HD 375
Series D
Weight (lb) 85
Hose ID (in) 3/8
Hose Length (ft) 75
Pressure (PSI) 4000
Inlet (in) 1/2 FPT
Hose Included yes
Max Temperature °F 200


D Series Reels meet requirements for higher volume 3/4 and 1 inch hose applications. Suitable for air, water, oil, diesel fuel and grease where long lengths of hose are required.

Reels available only in standard (rf) hose payout position.
Mounting holes 1/2" dia for max 3/8" dia. bolt.

LD - Low Pressure Reels for air, water, anti-freeze and diesel fuel transfer applications.

MD - Medium Pressure Reels for oil.

HD - High Pressure Reels are used for grease and heavy oils.

  • Safety banded spring sealed springcase
  • Full 1" flow path
  • Compact design
  • Guide rollers allow frictionless retrieval of hose
  • Heavy duty spool and frame design
  • Safety banded spring in sealed springcase

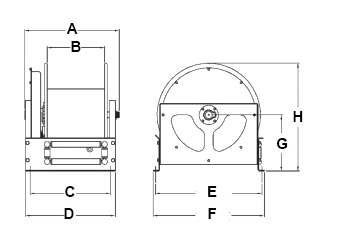

Dimensions for HD 375 Reels from Hosetract

Drag your finger across the table to scroll

A 12 1/2
B 6
C 10
D 11 5/8
E 18 1/2
F 19 3/8
G 9 3/4
H 18 3/4
