CS Series

Stainless Steel Water / Air / Chemicals Hose Reels

Spring Retractable

CS Series Series  Water / Air / Chemicals Hose Reels from Hosetract

  Models

Drag your finger across the table to scroll

Model Weight (lb) Hose ID (in) Hose Length (ft) Pressure (PSI) Inlet (in) Hose Included Max Temperature °F Rewind Type Fluid Quick Ship
LCS 340443/8403001/2 FPTyes200Spring RetractableWater
Air
Chemicals
LCS 350483/8503001/2 FPTyes200Spring RetractableWater
Air
Chemicals
LCS 370513/8703001/2 FPTyes200Spring RetractableWater
Air
Chemicals
LCS 540501/2403001/2 FPTyes200Spring RetractableWater
Air
Chemicals
LCS 550561/2503001/2 FPTyes200Spring RetractableWater
Air
Chemicals
LCS 300403/810001/2 FPTno200Spring RetractableWater
Air
Chemicals
LCS 500401/210001/2 FPTno200Spring RetractableWater
Air
Chemicals

  Features

CS Series Reels of 304 Stainless Steel should be utilized in harsh environments, such as chemical clean up or when a clean area is necessary for food or beverage processing. The latch mechanism is non-sparking in the event that flammable gases or liquids are present. Only available in low pressure.

Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/" wide x 3/4" deep for max 7/16" dia. bolt.

  • Air / Water application hose
  • White wash-down hose
  • Chemical application hose
  • Nickel Plated shaft and swivel are standard, for stainless shaft and swivel option contact a mdi Product Expert

  Dimensions

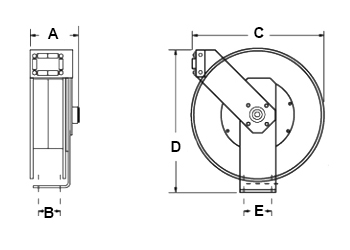

Dimensions for CS Series Reels from Hosetract



Drag your finger across the table to scroll

Model A B C D E
LCS 3406.5003.00018.00018.7505.000
LCS 3506.5003.00018.00018.7505.000
LCS 3706.5003.00018.00018.7505.000
LCS 5406.5003.00018.00018.7505.000
LCS 5506.5003.00018.00018.7505.000
LCS 3006.5003.00018.00018.7505.000
LCS 5006.5003.00018.00018.7505.000
